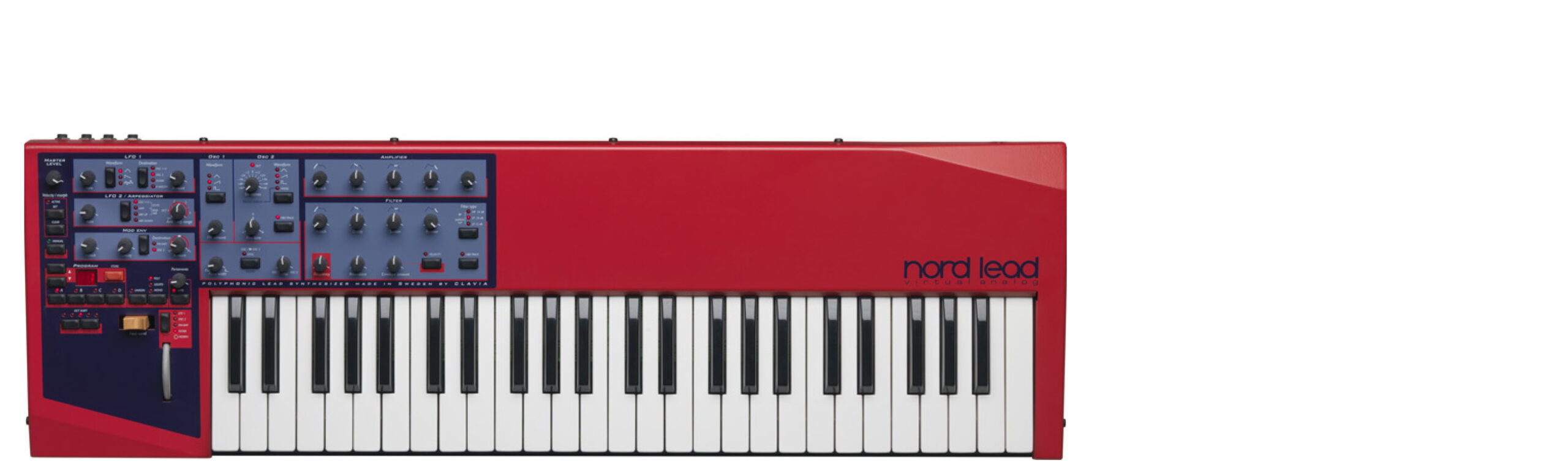

Nord Lead

The Nord Lead A1 analog modeling synthesizer will change your concept of synthesis. Whether you’re onstage or in the studio, the Lead A1’s innovative architecture lets you quickly amass a huge arsenal of stunning sounds that work perfectly across musical genres. Nord gave the A1 a fast, intuitive interface that lets you whip up awesome patches fast, and at the same time encourages experimentation. Blast out a run on the splittable 49-note Fatar keybed while sweeping the filter. Sounds and feels incredible, doesn’t it? And with a curb weight of under 11 pounds, the Nord Lead A1 makes an ideal gigging synth.

General

Polyphony 4 voices (12 expanded).
4 part multi-timbral.

Special Features

Velocity program: each function, controlled by a knob, can be controlled to respond to keyboard velocity.
Performance controllers
4 octave velocity sensitive keyboard with octave shift buttons (+/-2 oct.).
Modulation Wheel, the Pitch Stick (with no dead zone at zero crossing), 1 pedal input.

User interface

2 digit display, 26 knobs and 26 buttons for program editing.

Oscillator section

OSC 1 generates triangle, saw- tooth or pulse with adjustable width, waveforms.
OSC 2 generates triangle, sawtooth, or pulse (with adjustable width) waveforms and can also generate noise with a color control.
OSC 2 can be hardsynched to OSC 1. Linear deep frequency modulation of OSC 1 from OSC 2.

Filter section

12 dB (2-pole) low pass, 24 dB (4-pole) low pass, band pass or high pass.
Cut off, resonance, envelope amount, envelope amount controlled by velocity.
ADSR envelope.
Filter keyboard tracking, full or off.

Amplifier section

ADSR envelope
Gain control.

Modulation section

LFO 1 generating triangle, saw and random staircase routed to OSC1+2, OSC 2, filter or pulse- width.
LFO 2 produces a triangle waveform, routed to OSC 1 and 2 or amplifier.
It also controls the rate for the arpeg- giator.
Arpeggiator: Range: 1-4 octave. Modes: up, down, up/down, random. Hold function. Echo can be set between 1 to 8 repeats.
Modulation envelope (attack, decay) for OSC 2 pitch, FM amount and pulse width.

Performance

Play mode: Poly, legato, mono, unison mono, unison poly.
Manual mode: Four program slots for layering possibilities.
Portamento/auto portamento.

Memory

Programs (single sounds): 40 user, 59 Factory programs and 100 Factory Performances.
With the 8 voice expansion card, the Nord Lead can hold an additional 297 (99 x 3) user programs and 300 User Performance on a PCMCIA 128 kilobyte battery backed RAM card.

Audio Out

2 outputs (stereo). Low noise 18 bit DACs.
Headphones out (stereo)

MIDI

All control knobs and switches for program editing send and receive control change messages.
System exclusive bulk dumps. One program or all programs.

Dimensions

Width 865mm / 34″
Depth 265mm / 10.4″
Height 105mm / 4.1″

Weight

6.7 kg /14.7 lbs
